8 Year Exporter 16 Speed Drill Press - DP8A 8 inch 5 speed drill press machine – Allwin Detail:

Video

Product Details

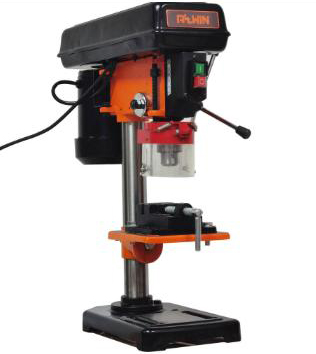

The table drilling machine with variable speed regulation is the ideal machine for everyone with the highest demands on their drilling results. As a table model, it offers a wide range of uses, whether in metal, plastics or hard and soft wood. With the adjustable speed, which can be set easily and without tools using a handle, you always have the right drilling speed for your material and the drill used. The laser light locks-on to your drill points that the bit will travel through for maximum precision during drilling.Place your chuck key on the attached key storage to make sure it is always there when you need it.

vsvd

ALLWIN’S 8-inch 5-Speed Drill Press is compact enough to limit space on your work bench but powerful enough to drill through metal, wood, plastics, and more. Drill up to a 1/2-inch hole in heavy-duty cast iron. Its powerful induction motor features ball bearing construction for an extended life, providing smooth and balanced performance even at high speeds. The 1/2-inch JT33 chuck gives you versatility with a variety of bits while the worktable bevels up to 45° left and right. Constructed with a rigid frame and a cast iron head, table, and base, ensure accurate holes and convenient drilling operations every time.

Precision Laser.Drilling Depth Adjustment System.Keyed Chuck 13mm/16mm, Onboard Key Storage, High Quality Drive Pulley with 5 Step.Inbuilt laser light,Table lock handle,Steel work table & Base.

Power Watts(S1): 250;Watts(S2 15min): 500
Max Chuck capacity φ13 or φ16 MM
Spindel travel(mm) 50
Taper JT33/B16
No. of speed 5
Speed range(rpm) 50HZ : 550~2500;  60HZ :  750~3200
Swing 200 MM; 8 INCH
Table size(mm) 164×162
Table Title -45~0~45
Columm Dia.(mm) 46
Base size(mm) 298×190
Tool Height(mm) 580
Carton size(mm) 465x370x240
N.W. / G.W(kgs) 13.5 / 15.5
Container load 20″GP(pcs) 715
Container load 40″GP(pcs) 1435
Container load 40″HQ(pcs) 1755

Product detail pictures:

8 Year Exporter 16 Speed Drill Press - DP8A 8 inch 5 speed drill press machine –  Allwin detail pictures

8 Year Exporter 16 Speed Drill Press - DP8A 8 inch 5 speed drill press machine –  Allwin detail pictures

8 Year Exporter 16 Speed Drill Press - DP8A 8 inch 5 speed drill press machine –  Allwin detail pictures

8 Year Exporter 16 Speed Drill Press - DP8A 8 inch 5 speed drill press machine –  Allwin detail pictures
